Shafiroff Racing UltraStreet Chevy Crate Engines

427 RealStreet Fuel Injected Small Block Chevrolet Crate Engine
Shown With Optional Equipment
Includes EZ-EFI & MSD Ignition

Finally A True Drop In Turnkey Fuel Injection Engine That Doesn't Require A Laptop Or A Degree In Rocket Science To Reap The Benefits Of A Proprly Designed And Tuned Fuel Injected System!

  • Horsepower
  • Torque
  • Bore & Stroke
  • Compression Ratio
  • Fuel Requirement
  • 525 @ 5600 RPM
  • 550 @ 4200 RPM
  • 4.125 x 4.000
  • 10.25 to 1
  • 91 Octane

  • Dart SHP Block w/Splayed 4 Bolt Main Caps
  • SSRE/Scat 4340 4.000" Stroke Steel Crank (1)
  • Scat 4340 6.000" H-Beam Steel Rods
  • Clevite 77 "H" Series Main & Rod Bearings
  • Mahle Custom Coated 10.25-1 Forged Aluminum Pistons
  • Plasma Moly Ring Set
  • SSRE/Comp Cams Custom Grind Hydraulic Roller Camshaft
  • Hgh Performance Hydraulic Roller Lifters
  • Cloyes True Roller Timing Set w/Torrington Bearing
  • Dart Pro 1 Platinum 215cc Angle Plug Aluminum Heads
  • 2.080"/1.600" Stainless Steel Valves
  • 1.470" Hydraulic Roller Springs w/Steel Retainers
  • Manley Chromemoly Head Bolts & Heat Treated Washers
  • Comp Cams Ultra Pro Magnum Roller Rockers
  • Chromemoly (1) Piece .080" Wall Pushrods
  • FelPro HP Head Gaskets w/Pre-Flattened Steel Wire
  • Edelbrock "RPM Air Gap" Aluminum Intake
  • Milodon Hi-Perf Oil Pan w/Passenger Side Dipstick
  • Melling Race Prepped Oil Pump
  • GM Performance Chrome Front Cover w/Billet Timing Pointer
  • Degreed Hi-Performance Harmonic Balancer
  • Fully Mapped & Calibrated EZ-EFI Fuel Injection
  • Custom Calibrated EFI Compatible MSD Distributor
  • Complete Assembly Internally Balanced
  • Individually Dyno Tested & Tuned
  • Actual Dyno Sheet Provided

You Asked For It And We Listened! We Struck A Deal With AFR To Get Some Of The Hottest Cylinder Heads On The Market And When Combined With Our Special "Proprietary Grind" Hot Hydraulic Roller Cam, "Ultra Hi-Rev" Hydraulic Roller Lifters and 1.6 Ratio Pro Magnum Rockers, The Power Is Up Substantially!

  • AFR 210 Eliminator Fully CNC Ported Aluminum Heads
  • 8MM Stainless Valves
  • AFR Competition Package Hydraulic Roller Springs
  • Comp Cams Custom "Proprietary Grind" Hydraulic Roller Cam
  • High Rev Hydraulic Roller Lifters
  • Horsepower
  • Torque
  • Compression Ratio
  • Fuel Requirement
  • 565 @ 5800 RPM
  • 575 @ 4600 RPM
  • 10.25 to 1
  • 91 Octane

Fuel System Components:

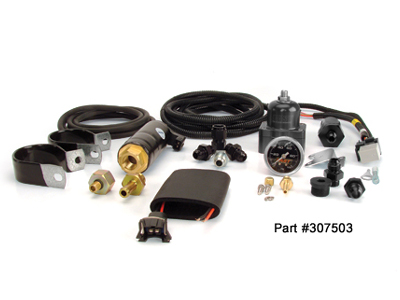

EZ-EFI Fuel Pump Kit
Includes: Inline Electric EFI Fuel Pump, 600 HP Adjustable Fuel Pressure Regulator, Fuel Pressure Gauge, Billet Fuel Filter (Re-usable), Relay Harness (Plug & Play for EZ-EFI), (1) 6AN to 6AN Female Coupler (Filter to Fuel Pump), (2) 6AN to O-Ring 6AN Straight Fitting (Regular In/Out). Price includes labor to set required fuel pressure.
$365
EZ-EFI Fuel Line Kit
Includes: 25 Feet of Push Lock #6 Hose, (3) 6AN Push On Straight Fittings (Black), (2) 6AN Push On 90 ° Fittings (Black), (3) Gator 1/2" Clamps.
$149

Aeromotive Phantom In-Tank Electric Fuel Pump Includes: In-Tank Fuel Pump, Black Anodized Hanger Assembly, Internal Baffling System. (Uses -6AN Fittings and Requires Return Style Fuel System). Rated for up to 750HP.$439
Aeromotive Phantom In-Tank Electric Fuel Pump Includes: In-Tank Fuel Pump, Black Anodized Hanger Assembly, Internal Baffling System. (Uses -6AN Fittings and Requires Return Style Fuel System). Rated for up to 1000HP.$549
Ignition Components:
MSD 6AL Digital Electronic Ignition Box w/Hi-Speed Rev Limiter$239
MSD 6AL-2 Digital Electronic Ignition Box w/Launch Control & Hi-Speed Rev Limiter$279
MSD Blaster 3 Hi Performance Ignition Coil w/HEI Style Post$49
Composite Distributor Gear (if required)$125
Intake Manifolds:
AFR Composite Titan Strip TXS Intake Manifold AFR's New Light Weight Titan Composite 2 Piece Intake Not Only Looks Cool, It Runs Cool Too!$575
Weiand X-CELerator Intake. Over An Inch Lower Than Virtually Every Other Performance SB Intake. Slight Loss In Torque But Essentially The Same HP As The Edelbrock! Will Fit Under Stock Corvette Hood.$N/C
Additional Parts - Labor - Accessories:
SFI Approved Harmonic Balancer (Required At All Race Tracks)$150

SFI Heavy Duty Flexplate & ARP Bolt Package$125
JW "The Wheel" Severe Duty SFI Flex Plate$215
PowerMaster Hi-Torque Mini Starter$229
Painless Performance Hot Shot Relay Kit (Recommended for above starter)$39

Edelbrock Aluminum "High Volume" Mechanical Water Pump (Short or Long Version)$250
Meziere 55GPH Electric Water Pump$450

Billet Specialties Tru Trac Serpentine System$Call
Billet Specialties V-Track Pulley System$Call
Polished Cast Aluminum Front Cover (Oil Pan Restrictions May Apply)$50
EnduraShine Intake Finish w/ARP Stainless Steel Hardware (Edelbrock Intakes Only)$195
Custom Powder Coating Packages Available$Call
Custom Locking & Calibrated Dipstick$95
